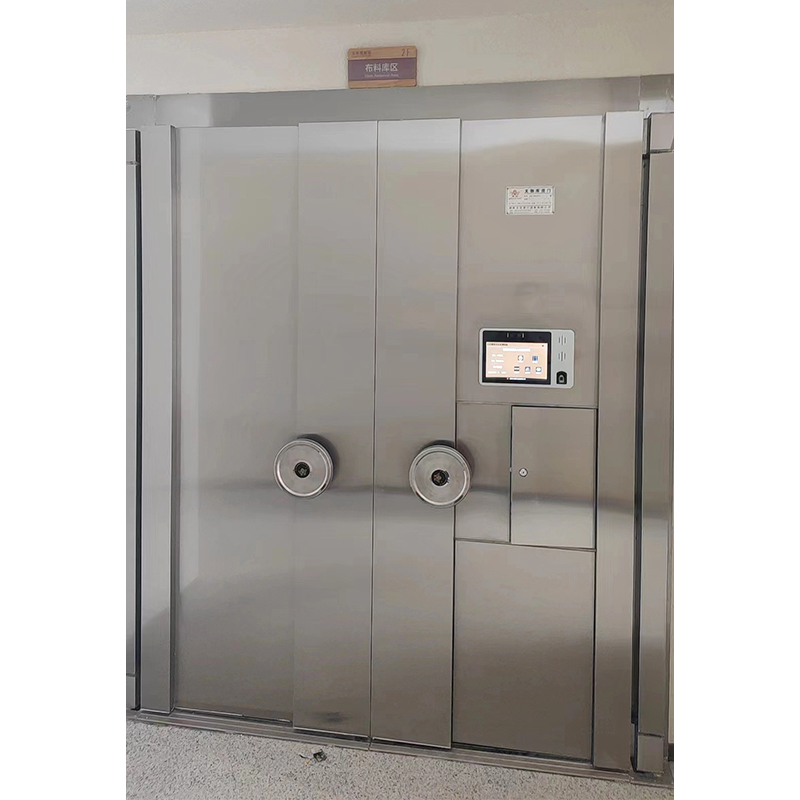

Double-Leaf Stainless Steel Waterproof Vault (Cultural Relics Vault) Door

Double-Leaf Stainless Steel Waterproof Vault (Cultural Relics Vault) Door

JKM-SZ-A（S）-WB
JKM-SZ-B（S）-WB
JKM-SZ-C（S）-WB

Customized according to drawings

The double-leaf stainless steel waterproof vault (cultural relic vault) door middle door is made of top-grade stainless steel materials and exquisite craftsmanship to create an indestructible waterproof and moisture-proof barrier. The double-leaf door design not only demonstrates grandeur and stability, but also facilitates the entry and exit of large cultural relics or valuables. The middle door configuration takes into account convenience and safety, with a built-in advanced lock system and multiple protection mechanisms to ensure the safety of cultural relics. It is suitable for high-end places such as large museums and cultural relic halls, and is the first choice for professional waterproof vault doors.

Consult

Features
Technical Indicators
Overall Dimension


1. Production standards: The stainless steel double-leaf vault (cultural relic warehouse) door-in-door is strictly manufactured in accordance with the "General Technical Conditions for Vault Doors" (GB37481-2019), the security industry standard of the People's Republic of China, and meets the GA38-2021 security requirements. 2. Materials: The main door leaf and emergency passage door leaf structure of the C-grade stainless steel double-leaf vault (cultural relic warehouse) door-in-door are: 1.2mm stainless steel plate + 10.0mm steel plate + 3.0mm steel frame and 150mm thick reinforced concrete composite layer (C30 concrete is filled with 12mm double-layer bidirectional ribbed steel bars with a steel bar spacing of 150mm) + 5.0mm steel plate + 1.2mm stainless steel plate. The main door leaf and emergency passage door leaf structure of the B-grade stainless steel double-leaf vault (cultural relic warehouse) door-in-door are: 1.2mm Stainless steel plate + 8.0mm steel plate + 3.0mm thick steel frame and 80mm thick reinforced concrete composite layer (C30 concrete filled with 12mm diameter double-layer bidirectional ribbed steel bars, steel bar spacing 150mm) + 5.0mm steel plate + 1.2mm stainless steel plate. The main door leaf and emergency passage door leaf structure of the A-grade stainless steel double-leaf vault (cultural relics vault) door from outside to inside are: 1.2mm Stainless steel plate + 5.0mm steel plate + 3.0mm steel frame and 50mm thick reinforced concrete composite layer (C30 concrete is filled with 12mm double-layer bidirectional ribbed steel bars, with a steel bar spacing of 150mm) + 3.0mm steel plate + 1.2mm stainless steel plate. 3. Day gate The stainless steel double-leaf vault (cultural relic warehouse) door-in-door is equipped with a stainless steel day gate, which is made of round and square tubes with a wall thickness of 1.0mm and a diameter of 19mm. The fence is 65mm apart and installed behind the vault door. It is a flat opening or push-in type, and is equipped with a set of key locks for internal and external bidirectional operation. It is sturdy and durable, can prevent forced entry, and ensure that when the warehouse is attacked, the staff in the warehouse have sufficient time to call the police. 4. Emergency door The emergency door is a door-in-door type, concealed on the vault door. When the vault door fails and cannot be opened, the emergency door can be opened to enter the warehouse to troubleshoot. Its structure, insurance performance, and protection level are consistent with the vault door. 5. Function The stainless steel double-leaf vault (cultural relic warehouse) door-in-door has the functions of fire prevention, anti-smashing, anti-prying, anti-flame cutting, anti-drilling, anti-spray sawing, anti-collision, and anti-riot. Its anti-destruction time is: Class C: 120 minutes. Class B 60 minutes. Class A 30 minutes. 6. Lock configuration The main door of the stainless steel double-leaf vault (cultural relic warehouse) door-in-door is equipped with 3 6731-type American imported mechanical password locks and 1 set of fingerprint access control system, equipped with four-lock linkage device, automatic scrambler device, and safety relocking device, the emergency door is equipped with 2 6731-type American imported mechanical password locks. (Specific configuration can be based on user requirements)
