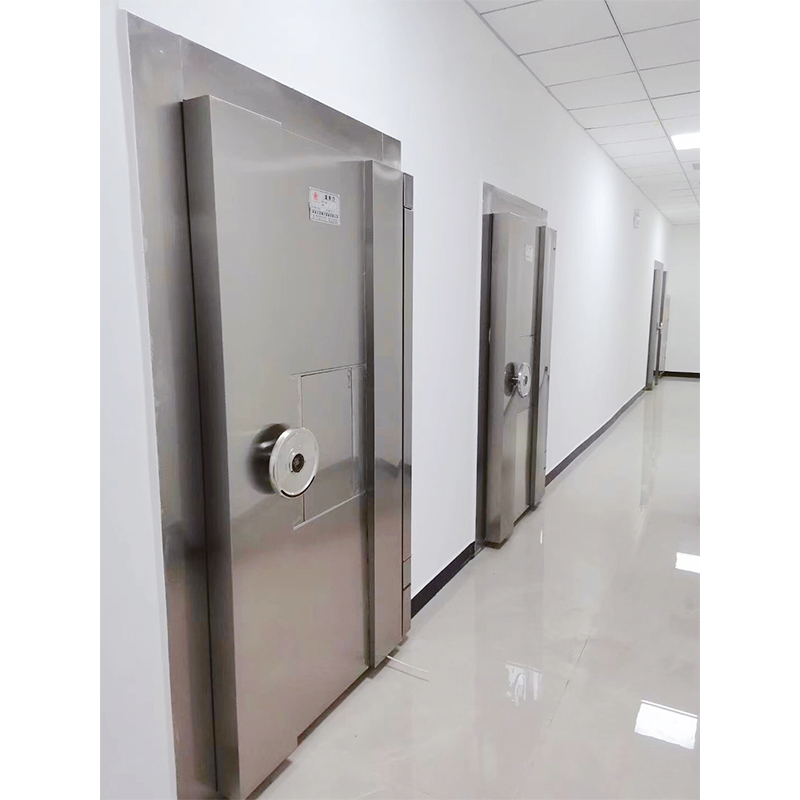

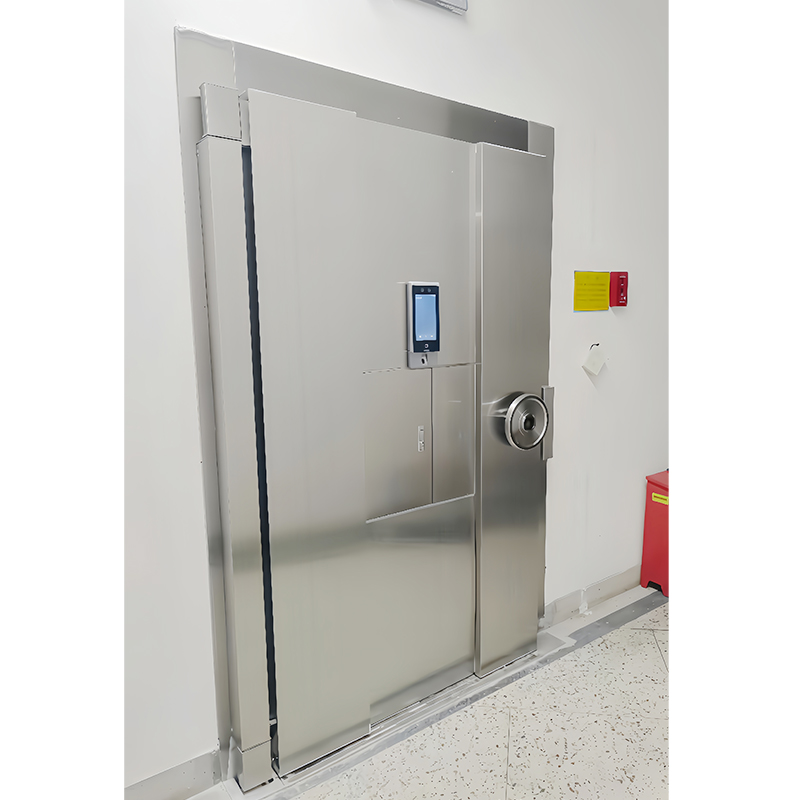

Single-Leaf Stainless Steel Waterproof Vault (Cultural Relics Vault) Door

Single-Leaf Stainless Steel Waterproof Vault (Cultural Relics Vault) Door

JKM-DZ-A（S）-WB
JKM-DZ-B（S）-WB
JKM-DZ-C（S）-WB

Customized according to drawings

The single-leaf stainless steel waterproof vault (cultural relic vault) door is made of high-quality stainless steel and has excellent waterproof and moisture-proof properties. It is designed specifically to protect precious cultural relics and valuables. The unique middle door structure ensures the convenience of daily operations and overall safety protection. It has a built-in advanced lock system, multiple safety protection mechanisms, and waterproof sealing technology to protect the safety of cultural relics in all directions. It is suitable for places that require special protection, such as museums and libraries, and is a perfect combination of professionalism and safety.

Consult

Features
Technical Indicators
Overall Dimension


1. Production standards: The stainless steel waterproof vault (cultural relic warehouse) door-in-door is strictly manufactured in accordance with the security industry standard of the People's Republic of China "General Technical Conditions for Vault Doors" (GB37481-2019), meeting the GA38-2021 security requirements. 2. Materials: The main door leaf and emergency passage door leaf structure of the C-grade stainless steel waterproof vault (cultural relic warehouse) door-in-door are from the outside to the inside: 1.2mm stainless steel plate + 10.0mm steel plate + 3.0mm thick steel frame and 150mm thick reinforced concrete composite layer (C30 concrete is filled with 12mm diameter double-layer bidirectional ribbed steel bars, with a steel bar spacing of 150mm) + 5.0mm steel plate + 1.2mm stainless steel plate. The main door leaf and emergency passage door leaf structure of the B-grade stainless steel waterproof vault (cultural relic warehouse) door-in-door are from the outside to the inside: 1.2mm Stainless steel plate + 8.0mm steel plate + 3.0mm steel frame and 80mm thick reinforced concrete composite layer (C30 concrete is filled with 12mm double-layer bidirectional ribbed steel bars with a spacing of 150mm) + 5.0mm steel plate + 1.2mm stainless steel plate. The main door leaf and emergency passage door leaf structure of the A-grade stainless steel waterproof vault (cultural relic warehouse) door-in-door are: 1.2mm stainless steel plate + 5.0mm steel plate + 3.0mm steel frame and 50mm thick reinforced concrete composite layer (C30 concrete is filled with 12mm double-layer bidirectional ribbed steel bars with a spacing of 150mm) + 3.0mm steel plate + 1.2mm stainless steel plate. 3. Day gate The stainless steel waterproof vault (cultural relic warehouse) door-in-door is equipped with a stainless steel day gate, which is made of round and square tubes with a wall thickness of 1.0mm and a diameter of 19mm. The fence is 65mm apart and installed behind the vault door. It is a flat opening or inward push type. Equipped with 1 set of key locks for both internal and external bidirectional operation. It is strong and durable, can prevent forced entry, and ensure that when the warehouse is attacked, the staff in the warehouse have sufficient time to call the police. 4. Emergency door The emergency door is a door-in-door type, concealed on the vault door. When the vault door fails and cannot be opened, the emergency door can be opened to enter the warehouse to troubleshoot. Its structure, insurance performance, and protection level are consistent with the vault door. 5. Function The stainless steel waterproof vault (cultural relic warehouse) door-in-door has the functions of waterproof, fireproof, anti-smashing, anti-prying, anti-flame cutting, anti-drilling, anti-spray sawing, anti-collision, and anti-riot. Its anti-destruction time: Class C: 120 minutes. Class B 60 minutes. Class A 30 minutes. 6. Lock configuration The main door of the stainless steel double-leaf vault (cultural relic vault) is equipped with 3 6731-type American imported mechanical password locks and 1 set of fingerprint access control system, equipped with a four-lock linkage device, an automatic scrambler device, and a safety relocking device, the emergency door is equipped with 2 6731-type American imported mechanical password locks. (Specific configuration can be based on user requirements) 7. Waterproof function Under a certain water pressure, the key parts and structures of the door are sealed with imported rubber edge guards, and equipped with a strong clamping device to prevent water from entering. After the vault door with waterproof function is subjected to water pressure of no more than 5m for 24 hours, the amount of water that penetrates into the vault is less than or equal to 0.05m³.
