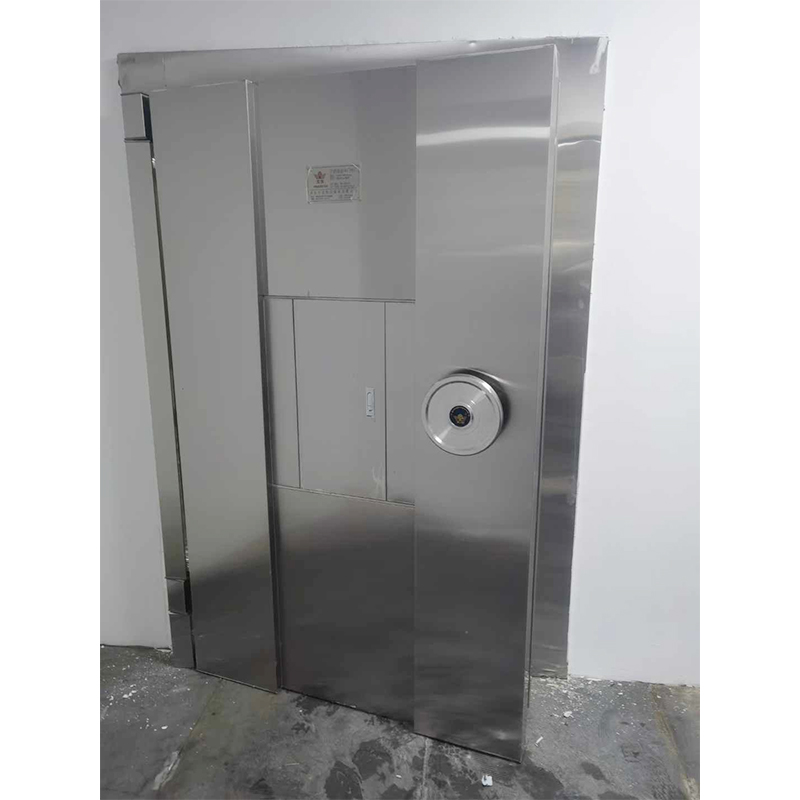

Single Stainless Steel Vault Door Middle Door

Single Stainless Steel Vault Door Middle Door

JKM-DZ-A-WB

JKM-DZ-B-WB

JKM-DZ-C-WB

Customized according to drawings.

The single-leaf stainless steel vault door middle door is made of high-quality stainless steel and crafted with exquisite craftsmanship. The overall structure is solid and has excellent anti-pry, anti-drill and anti-impact capabilities. The unique middle door design not only improves the convenience of daily use, but also realizes the function of quick access while maintaining overall security. Equipped with an advanced lock system and multiple security protection mechanisms, it ensures that the vault door can maintain extremely high security performance under any circumstances. This vault door middle door is an ideal choice for places that require high security protection, such as banks and jewelry stores.

Consult

Features
Technical Indicators
Overall Dimension


1. Production standards: The stainless steel vault door middle door is strictly manufactured in accordance with the security industry standard of the People's Republic of China "General Technical Conditions for Vault Doors" (GB37481-2019), meeting the GA38-2021 security requirements. 2. Materials: The main door leaf and emergency passage door leaf structures of the middle door of the C-grade stainless steel vault door are from outside to inside: 1.2mm stainless steel plate + 10.0mm steel plate + 3.0mm thick steel frame and 150mm thick reinforced concrete composite layer (C30 concrete is filled with 12mm double-layer bidirectional ribbed steel bars with a steel bar spacing of 150mm) + 5.0mm steel plate + 1.2mm stainless steel plate. The main door leaf and emergency passage door leaf structures of the middle door of the B-grade stainless steel vault door are from outside to inside: 1.2mm stainless steel plate + 8.0mm steel plate + 3.0mm thick steel frame and 80mm thick reinforced concrete composite layer (C30 concrete is filled with 12mm double-layer bidirectional ribbed steel bars with a steel bar spacing of 150mm) + 5.0mm steel plate + 1.2mm stainless steel plate. The main door leaf and emergency passage door leaf structures of the middle door of the A-grade stainless steel vault door are from outside to inside: 1.2mm Stainless steel plate + 5.0mm steel plate + 3.0mm steel frame and 50mm thick reinforced concrete composite layer (C30 concrete is filled with 12mm double-layer bidirectional ribbed steel bars, with a steel bar spacing of 150mm) + 3.0mm steel plate + 1.2mm stainless steel plate. 3. Daily gate The stainless steel vault door is equipped with a stainless steel daily gate, which is made of round and square tubes with a wall thickness of 1.0mm and a diameter of 19mm. The fence is 65mm apart and installed behind the vault door. It is a flat opening or push-in type, and is equipped with a set of key locks for internal and external bidirectional operation. It is sturdy and durable, can prevent forced entry, and ensure that when the warehouse is attacked, the staff in the warehouse have sufficient time to call the police. 4. Emergency door The emergency door is a door-in-door type, concealed on the vault door. When the vault door fails and cannot be opened, the emergency door can be opened to enter the warehouse to troubleshoot. Its structure, insurance performance, and protection level are consistent with the vault door. 5. Function The stainless steel vault door middle door has the functions of fireproof, anti-smashing, anti-prying, anti-flame cutting, anti-drilling, anti-spray sawing, anti-collision and anti-riot. Its anti-destruction time is: Class C: 120 minutes. Class B 60 minutes. Class A 30 minutes. 6. Lock configuration The main door of the stainless steel vault door middle door is equipped with 3 6731-type American imported mechanical password locks and 1 set of fingerprint access control system, equipped with four-lock linkage device, automatic scrambler device, and safety relocking device, the emergency door is equipped with 2 6731-type American imported mechanical password locks. (Specific configuration can be based on user requirements)
